GENERAL PARAMETERS

Manufacturer:Aion
Level:Compact SUV
Energy type:Pure electric
Time to market:2022.09
Maximum power(KW):150
Maximum torque (N-m):225
Electric motor (Ps):204
L×W×H (mm):4535*1870"1650
Body type:5-door 5-seat SUV
Maximum speed (km/h):150
Energy equivalent fuel dissipation (L/100km):1.56

CAR BODY

Length (mm):4535
Width (mm):1870
Height (mm):1650
Wheelbase (mm):2750
Front track (mm):1600
Rear Track (mm):1600
Full loaded minimum ground clearance (mm):150
Approach angle(°):18
Departure angle (°):27
Maximum gradability (%):30
Maximum angle of climbing (°):16.7
Minimum turning radius (m):5.5
Body type:SUV
Number of doors (pieces):5
Number of seats (pieces):5
Curb weight (kg):1735
Maximum volume of luggage compartment (Kg):2160

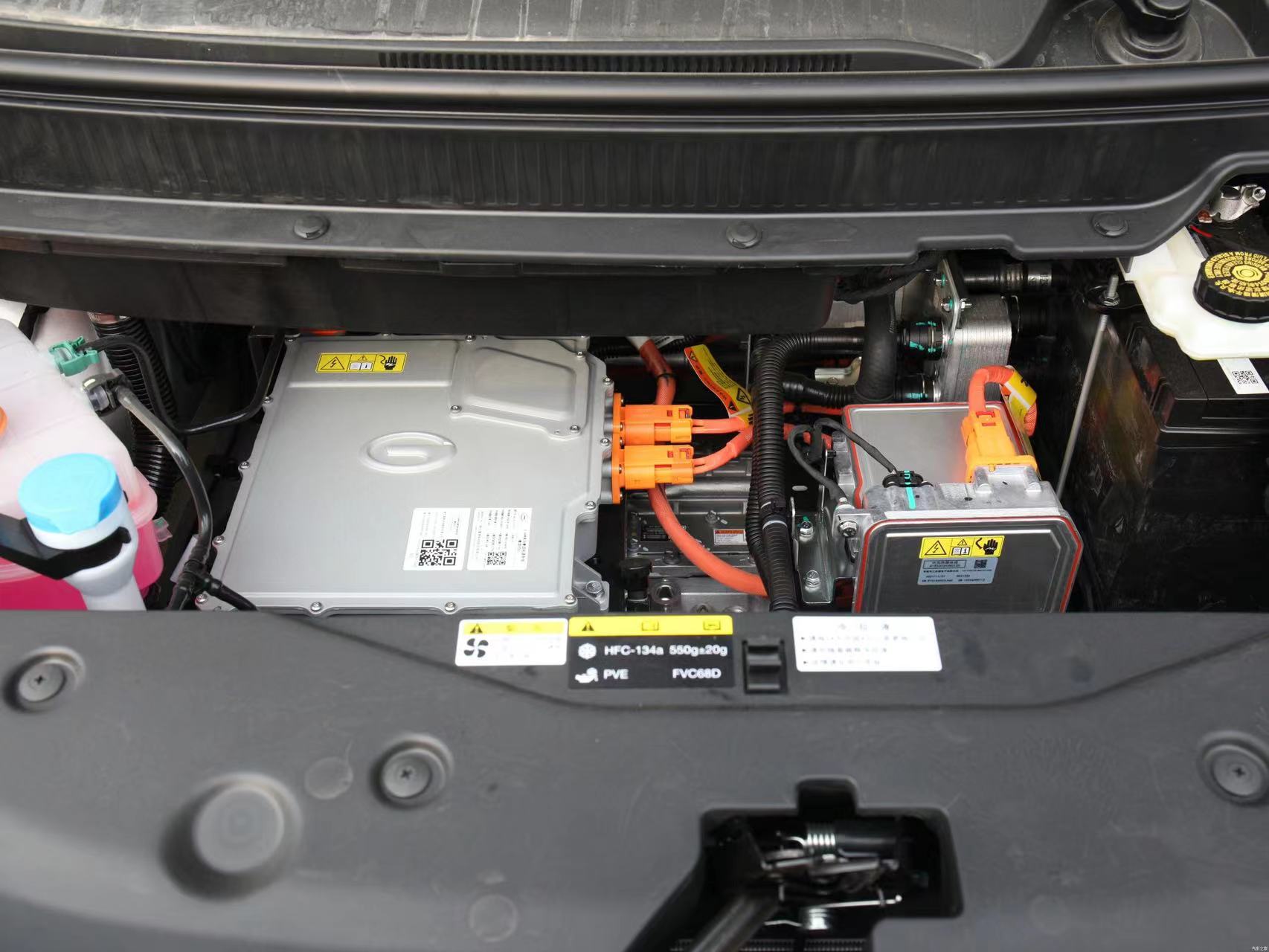

ELECTRIC MOTOR

Motor type:Permanent magnet / synchronization
Motor total power (KW):150
Motor total torque (Nm):225
Front motor maximum power (KW):150
Front motor maximum torque (N-m):225
Number of drive motors:single motor
Motor layout:front
Battery Type:Lithium iron phosphate battery
Cell brand:CATLGAC
Battery cooling system:liquid cooling
CLTC pure electric cruising range (km):510
Battery capacity (kWh):63.983
Battery energy density (Wh/kg):143
power consumption per 100 kilometers (KWh/100km):13.8

GEARBOX

Number of gears:1
Transmissiontype:Fixed gear ratio
Short name:Electric vehicle single speed gearbox

CHASSIS STEERING

Drive mode:front engine front drive
Front suspension type:MacPherson independent suspension
Rear suspension type:Torsion beam non - independent suspension
Steering assist type:Electric assist
Body structure:load bearing

WHEEL BRAKING

Front brake type:ventilated disc
Rear brake type:Disk type
Parking brake type:Electronic parking
Front tire specification:215/55 R17
Rear tire specification:215/55 R17
Spare tire specification:None

ACTIVE / PASSIVE SECURITY CONFIGURATION

Main/passenger seat airbags:Main seat / Passenger seat
Tire pressure monitoring:Tire pressure alarm
Seat belt not fastened:whole car

ASSISTANCE / CONTROL CONFIGURATION

Front/rear radar:front-/rear
Parking camera system:Reverse image
Cruise system:Cruise Control
Driving mode switching: sports
economy
Standard/Comfort

EXTERNAL / ANTI-THEFT CONFIGURATION

Wheel material:steel
O Aluminum alloy
Key type:remote key
Keyless entry system:front row

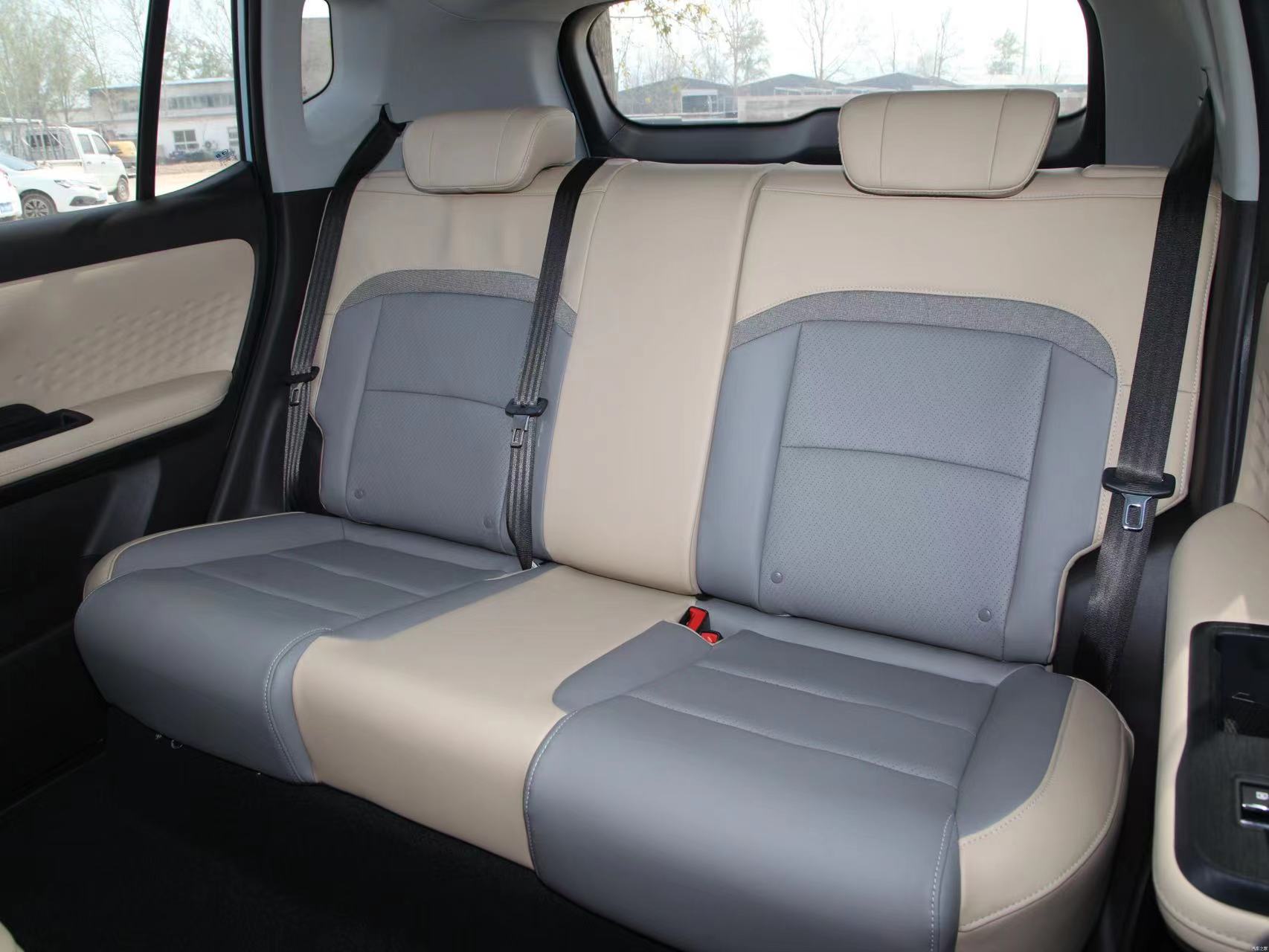

SEAT CONFIGURATION

Seat material:fabric
Main seat adjustment mode:front/rear adjustment
Backrest adjustment
High/low adjustment (2 way)
Passenger seat adjustment mode:front/rear adjustment
Backrest adjustment
Rear seats folded down:ratio down
Front/rear seat center armrest:front / rear-

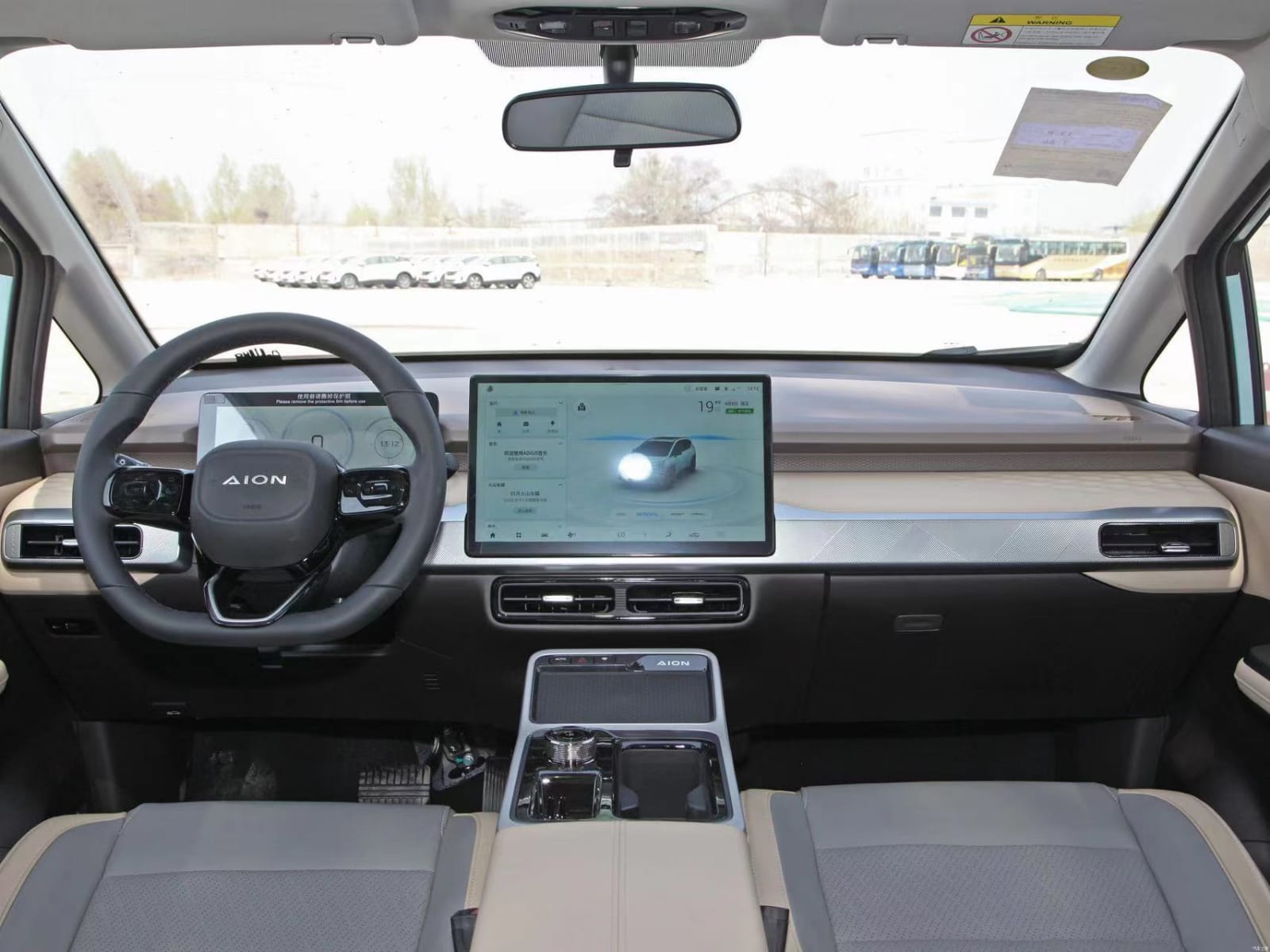

MULTIMEDIA CONFIGURATION

Center console large screen:Touch LCD screen
Center console screen size: 14.6 inches
Voice recognition control system: multimedia system
navigation
phone call
air conditioner
Vehicle-mounted intelligent system: ADiGO
4G/5G network: 4G
Multimedia/charging interface: USB
Number of USB/Type-C interfaces:front 1/back 1

LIGHTING CONFIGURATION

Low beam light source:Led
High beam light source:Led

GLASS/REARVIEW MIRROR

Front/rear power windows:front/rear
One key Windows lifting function:Whole car
External rearview mirror function:electrical control
Internal rearview mirror function:Manual anti-glare
Induction wiper:rain sensor

AIR CONDITIONER/REFRIGERATOR

Air conditioner temperature control mode:automatic air-conditioning
