GENERAL PARAMETERS

Manufacturer:Geometay vehicle
Level:compact car
Energy type:Pure electric
Time to market:2022.04
NEDC pure electric cruising range (km):430
Maximum power(KW):150
Maximum torque (N-m):310
Electric motor (Ps):204
L×W×H (mm):4752*1804*1503
Body type:4-door 5-seat sedan
Maximum speed (km/h):150
Official 0-100km/h acceleration (s):6.9
Energy equivalent fuel dissipation (L/100km):1.5

CAR BODY

Length (mm):4752
Width (mm):1804
Height (mm):1503
Wheelbase (mm):2700
Front track (mm):1560
Rear Track (mm):1560
Full loaded minimum ground clearance (mm):120
Approach angle(°):14
Departure angle (°):18
Minimum turning radius (m):5.5
Number of doors (pieces):4
Number of seats (pieces):5
Luggage compartment volume (L):430
Curb weight (kg):1560
Maximum volume of luggage compartment (Kg):2010

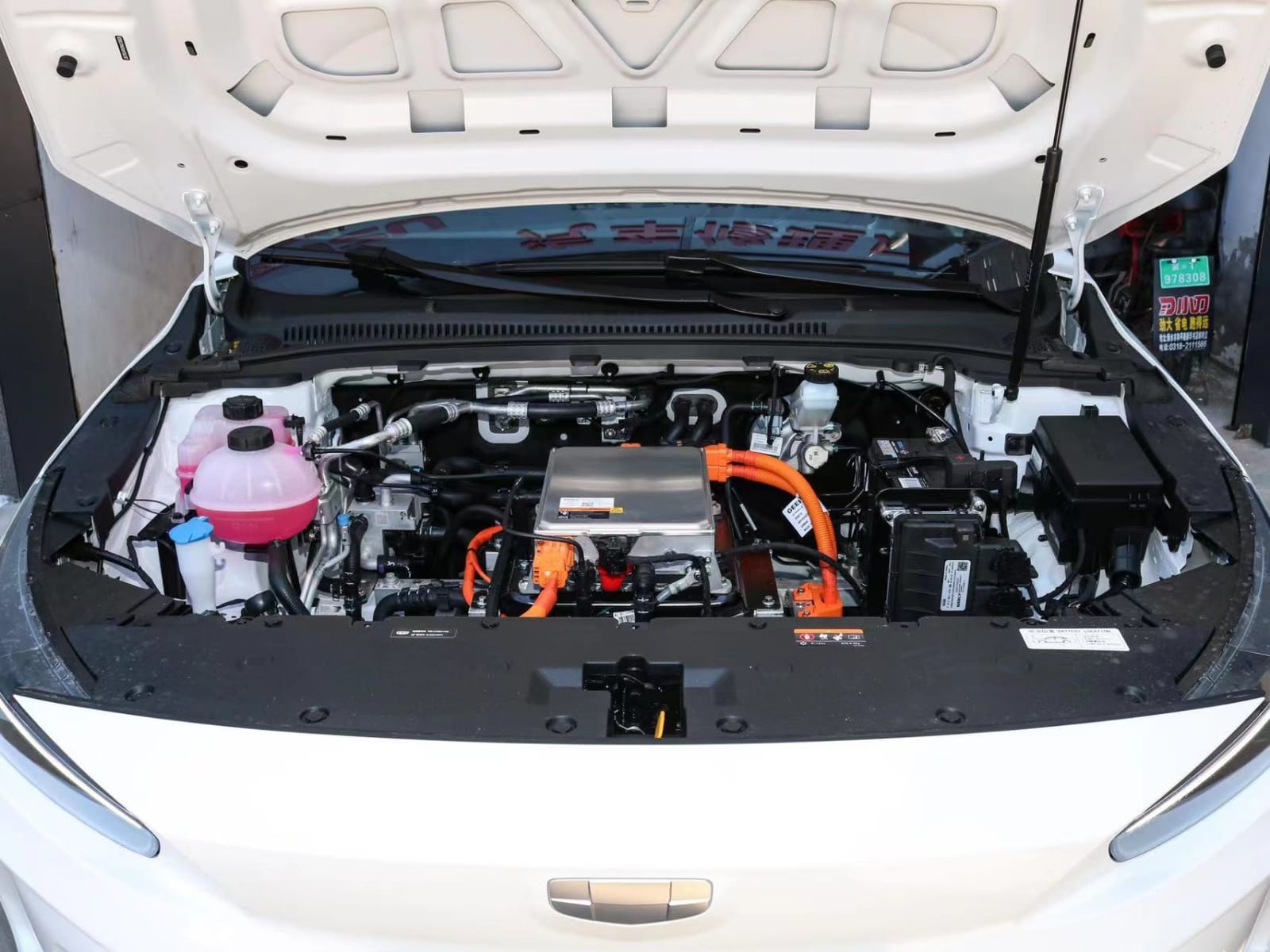

ELECTRIC MOTOR

Motor type:Permanent magnet / synchronization
Motor total power (KW):150
Motor total torque (Nm):310
Front motor maximum power (KW):150
Front motor maximum torque (N-m):310
Number of drive motors:single motor
Motor layout:front
Battery Type:Ternary lithium battery
Cell brand:Weirong electric /CATL
Battery cooling system:liquid cooling
Change battery:Not supported
NEDC pure electric cruising range(km):430
Battery capacity (kWh):53
Battery energy density (Wh/kg):160.35
power consumption per 100 kilometers (KWh/100km):13.3

GEARBOX

Number of gears:1
Transmissiontype:Fixed gear ratio
Short name:Electric vehicle single speed gearbox

CHASSIS STEERING

Drive mode:front engine front drive
Front suspension type:MacPherson independent suspension
Rear suspension type:Torsion beam non - independent suspension
Steering assist type:Electric assist
Body structure:load bearing

WHEEL BRAKING

Front brake type:ventilated disc
Rear brake type:Disk type
Parking brake type:Electronic parking
Front tire specification:215/50 R17
Rear tire specification:215/50 R17
Spare tire specification:None

ACTIVE / PASSIVE SECURITY CONFIGURATION

Main/passenger seat airbags:Main seat/Passenger seat
Front/rear side airbags:Front/Rear-
Tire pressure monitoring:Tire pressure indicator
Seat belt not fastened:front row

ASSISTANCE / CONTROL CONFIGURATION

Front/rear radar:front-/rear
Parking camera system:Reverse image
Cruise system:Cruise Control
sports
Driving mode switching:economy
Standard
Comfort

EXTERNAL / ANTI-THEFT CONFIGURATION

Sunroof type:electric sunroof
Wheel material:Aluminum alloy
Key type:remote key
Keyless entry system:whole car

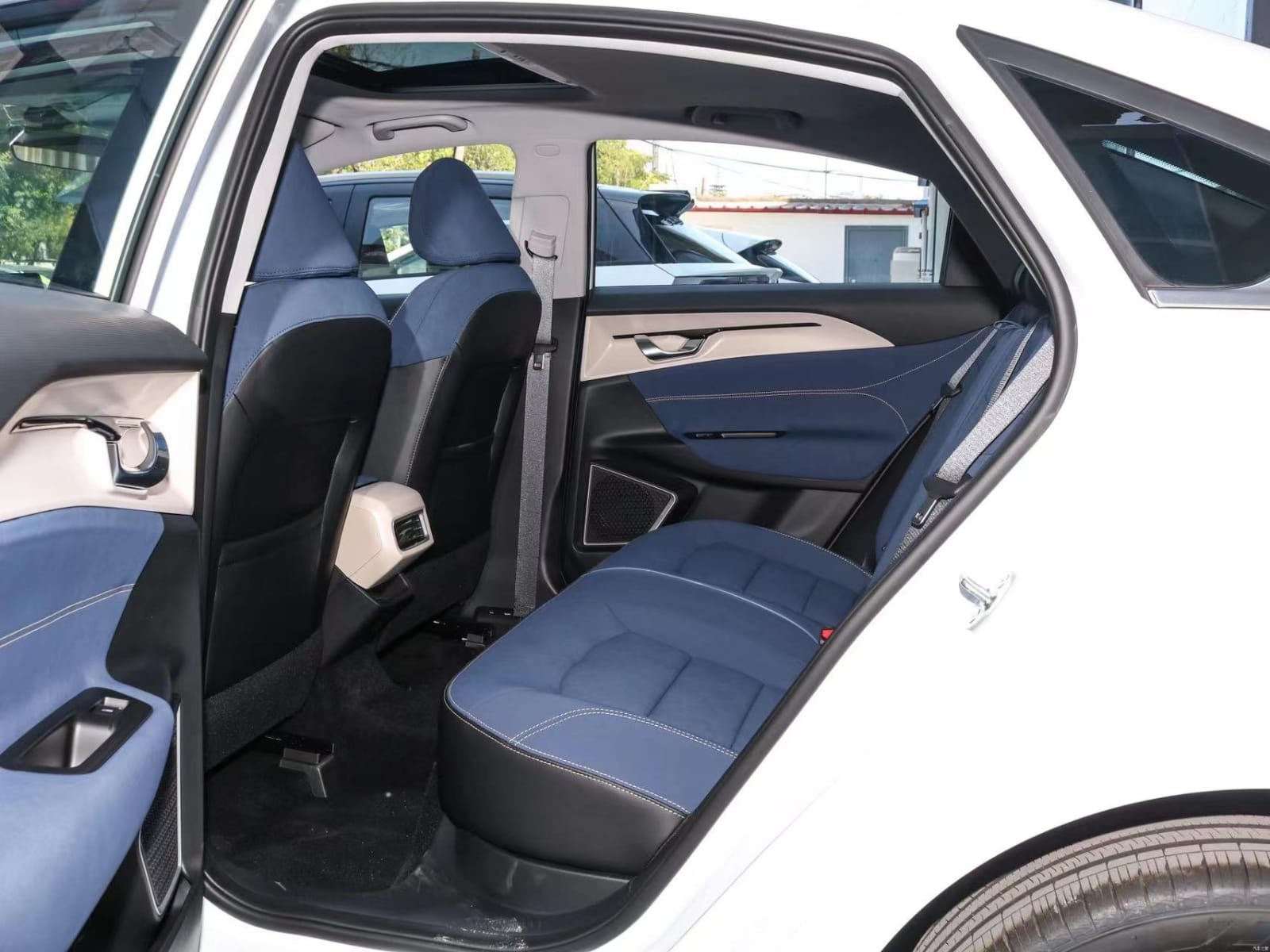

SEAT CONFIGURATION

Seat material:Leather/fleece mix
:front/rear adjustment
Main seat adjustment mode:Backrest adjustment
:High/low adjustment (2 way)
Passenger seat adjustment mode:front/rear adjustment
:Backrest adjustment
Main/passenger seat electric adjustment:Main/passenger-
Front seat function:Heating
Rear seats folded down:ratio down
Front/rear seat center armrest:front/rear-

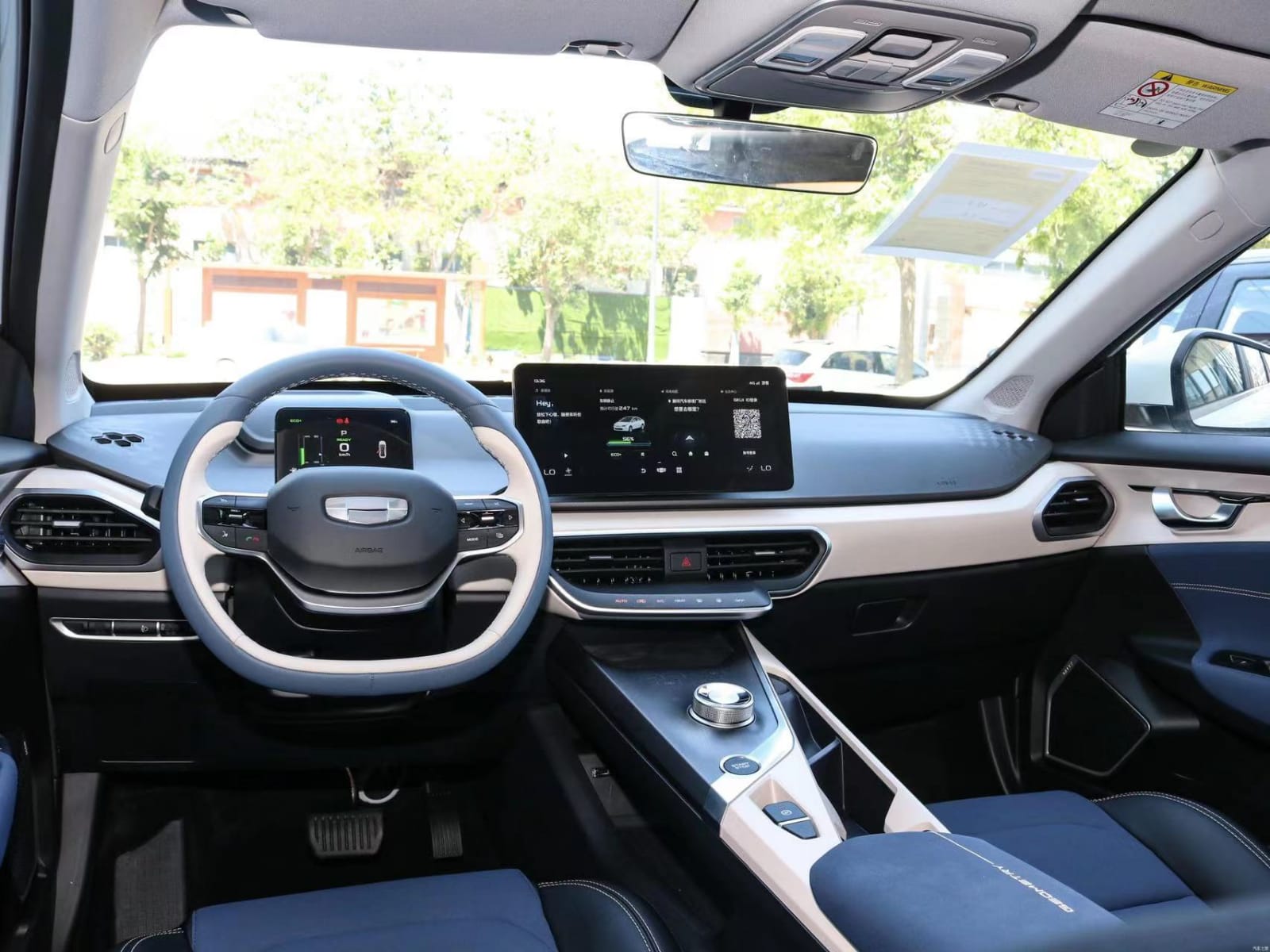

MULTIMEDIA CONFIGURATION

Center console large screen: Touch LCD screen
Center console screen size: 12.3 inches
Voice recognition control system:multimedia system
navigation
phone call
air conditioner
sunroof
Vehicle-mounted intelligent system:GKUI
4G/5G network: 4G
Multimedia/charging interface: USB
Number of USB/Type-C interfaces:front 2/back 1

LIGHTING CONFIGURATION

<Low beam light source: LED
High beam light source: LED

GLASS/REARVIEW MIRROR

Front/rear power windows:front/rear
One key Windows lifting function:Whole car
External rearview mirror function  :electrical control
:electric folding
:Rearview mirror heats
:automatically folded when the car is locked
Internal rearview mirror function  :Manual anti-glare
Interior makeup mirror  :Main driver + lights
Passenger seat + light

AIR CONDITIONER/REFRIGERATOR

Air conditioner temperature control mode:automatic air-conditioning
