GENERAL PARAMETERS

Manufacturer:Dongfeng passenger vehicle
Level:compact car
Energy type:Pure electric
Time to market:2022.08
Maximum power(KW):110
Maximum torque (N-m):210
Electric motor (Ps):150
L×W×H (mm):4700*1725*1530
Body type:4-door 5-seat sedan
Maximum speed (km/h):150
Official 0-100km/h acceleration (s):9.5
Official 0-50km/h acceleration (s):4.3
Energy equivalent fuel dissipation (L/100km):1.49

CAR BODY

Length (mm):4700
Width (mm):1725
Height (mm):1530
Wheelbase (mm):2700
Front track (mm):1475
Rear Track (mm):1480
Full loaded minimum ground clearance (mm):120
Approach angle(°):17
Departure angle (°):20
Minimum turning radius (m):5.8
Body type:sedan
Number of doors (pieces):4
Number of seats (pieces):5
Luggage compartment volume (L):502
Curb weight (kg):1537
Maximum volume of luggage compartment (Kg):1969

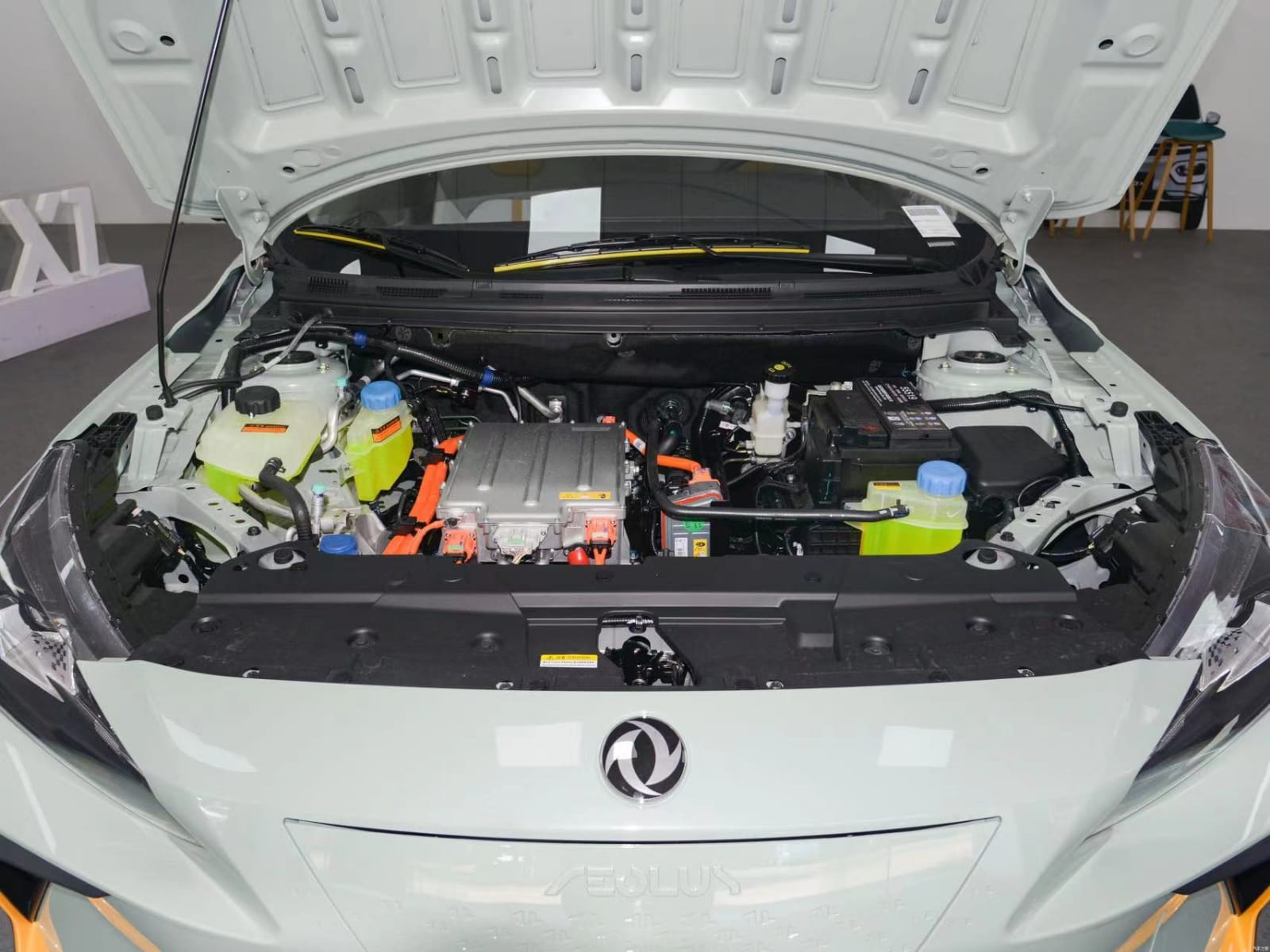

ELECTRIC MOTOR

Motor type:Permanent magnet / synchronization
Motor total power (KW):110
Motor total torque (Nm):210
Front motor maximum power (KW):110
Front motor maximum torque (N-m):210
Number of drive motors:single motor
Motor layout:前置
Battery Type:Lithium iron phosphate battery
Cell brand:Sunwoda
Battery cooling system:liquid cooling
Change battery:-
CLTC pure electric cruising range (km):412
Battery capacity (kWh):50.23
Battery energy density (Wh/kg):140
power consumption per 100 kilometers (KWh/100km):13.2

GEARBOX

Number of gears:1
Transmissiontype:Fixed gear ratio
Short name:Electric vehicle single speed gearbox

CHASSIS STEERING

Drive mode:front engine front drive
Front suspension type:MacPherson independent suspension
Rear suspension type:Torsion beam non - independent suspension
Steering assist type:Electric assist
Body structure:load bearing

WHEEL BRAKING

Front brake type:ventilated disc
Rear brake type:Disk type
Parking brake type:Electronic parking
Front tire specification:205/50 R17
Rear tire specification:205/50 R17
Spare tire specification:tyre repair kit

ACTIVE / PASSIVE SECURITY CONFIGURATION

Main/passenger seat airbags:Main seat/Passenger seat
Tire pressure monitoring:Tire pressure indicator
Seat belt not fastened:front row

ASSISTANCE / CONTROL CONFIGURATION

Front/rear radar:front-/rear
Parking camera system:Reverse image
Driving mode switching:economy

EXTERNAL / ANTI-THEFT CONFIGURATION

Wheel material:steel
O Aluminum alloy
Key type:remote key

SEAT CONFIGURATION

Seat material:Fuax Leather
Main seat adjustment mode:front/rear adjustment
Backrest adjustment
High/low adjustment (2 way)
Passenger seat adjustment mode:front/rear adjustment
Backrest adjustment
Front/rear seat center armrest:front/rear-

MULTIMEDIA CONFIGURATION

:Touch LCD screen
Center console large screen:9 inches
Multimedia/charging interface: USB
Number of USB/Type-C interfaces:front 1/back 2

LIGHTING CONFIGURATION

Low beam light source:Halogen
High beam light source:Halogen
Front fog lights:O Halogen

GLASS/REARVIEW MIRROR

Front/rear power windows:front/rear
One key Windows lifting function:Driving seat
External rearview mirror function :electrical control
Rearview mirror heats
Internal rearview mirror function  :Manual anti-glare

AIR CONDITIONER/REFRIGERATOR

Air conditioner temperature control mode:automatic air-conditioning
