GENERAL PARAMETERS

Manufacturers: BYD
Grade: Small Car
Energy type: Pure Electric
Time on market: Dec 2022
CLTC endurance mileage of pure electric (km): 420
Fast charge time (hours): 0.5
Percentage of fast charge capacity: 80
Max. power (kW): 70
Max. torque (Nm): 180
Electric motors (Ps): 95
L*W*H(mm): 4125*1770*1570
Body structure: 5-door, 5-seater hatchback
Max. Speed (km/h): 150
Electricity equivalent fuel consumption (L/100Km): 1.19 -
Vehicle warranty: Six years or 150000 kilometers

CAR BODY

Length (mm): 4125
Width (mm):1770
Height (mm) :1570
Wheelbase (mm): 2700
Front track (mm): 1530
Rear track (mm) :1530
Approach angle (°): 17
Departure angle (°): 23
Minimum turning radius (m): 5.25
Body structure: Hatchback
Number of car doors: 5
Number of seats: 5
Rear compartment volume (L): 345-1310
Curb weight(kg): 1405
Max. fully loaded mass (kg): 1780

ELECTRIC MOTOR

Motor type: Permanent magnet/synchronous
Total power of electric motor (kW): 70
Total torque of electric motor (N·m) :180
Max. front motor power (kW): 70
Max. torque of front motor (N·m): 180
Number of driving motors: Single motor
Motor layout: Front-mounted
Battery type: Lithium iron phosphate battery
Battery brands: Foody
Battery cooling method: Liquid cooling
CLTC endurance mileage of pure electric (km): 420
Battery energy (kWh): 44.928
Battery energy density (Wh/kg): 140.56
Power consumption per 100 km (KWh/100Km ): 10.5
Fast charge power (KW): 60
Fast charge time (hours): 0.5
Fast charge capacity (％) :80

GEARBOX

Number of gears: 1
Gear type: Fixed gear ratio gearbox
Abbreviation: Single-speed gearboxes for electric vehicles

CHASSIS STEERING

Driving method: Front-engine, Front-wheel drive layout
Front suspension type: McPherson independent suspension
Rear suspension type: Torsion beam non independent suspension
Type of assistance: Electric power
Vehicle body structure: Monocoque

WHEEL BRAKING

Front brake type: Vented Disc
Rear brake type: Disc
Parking brake type: Electronic parking
Front tire specifications: 195/60 R16
Rear tire specifications: 195/60 R16
Spare tire type: No

ACTIVE / PASSIVE SAFETY EQUIPMENT

Main/passenger airbag: Main/passenger
Front/rear side airbags: Front/rear-
Front/rear head airbags (air curtains): Front/rear
Tyre pressure monitoring function: Tire pressure display
Unbuckled seat belt reminder: front row

AUXILIARY / CONTROL CONFIGURATION

Front/rear parking radar: Front/rear
Driving assistance imaging: Front/rear 360-degree panoramic picture
Cruise system: Cruise control
Driving mode switching: Sport
Economy
Standard and Comfort
Snowfield

EXTERNAL / ANTI-THEFT CONFIGURATION

Skylight type: Non openable panoramic sunroof
Wheel material: Aluminum door
Key type: Remote key Bluetooth key
NFC/RFID key
Remote key
Bluetooth key
NFC/RFID key

Keyless entry function : Driver's seat

SEAT CONFIGURATION

Seat material: Imitation leather
Main seat adjustment method: Fore-and-aft adjustment
Backrest adjustment
High and low djustment (2-way)

Passenger seat adjustment: Fore-and-aft adjustment
Backrest adjustment
Electric adjustment of the main/passenger seat: Main/passenger
Front seat function: Heating

MULTIMEDIA CONFIGURATION

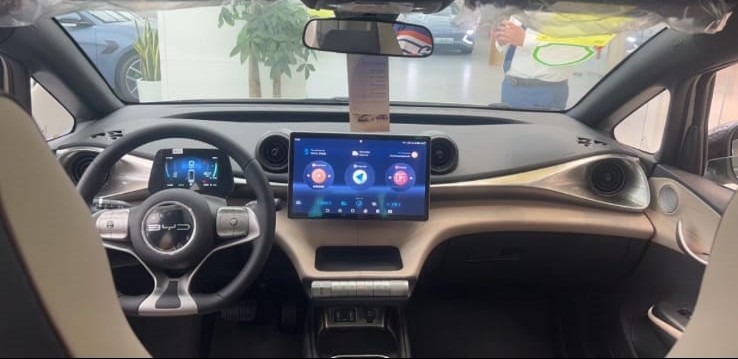

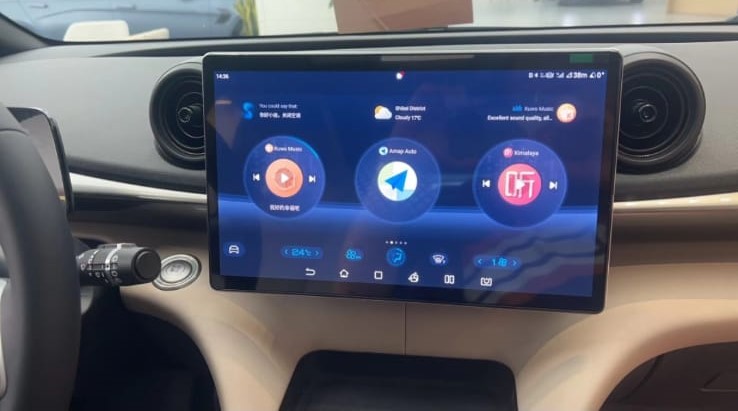

Central color screen: Touchscreen LCD Touchscreen LCD
Central screen size: 12.8 inches
Map Brand: AutoNavi
Voice recognition control system: Multimedia
Navigation
Phone
Air-conditioning
On board intelligent system: DiLink
4G/5G network: 4G
Multimedia/charging interface: USB
SD
Number of USB/Type-C interfaces: 2 in front/1 in rear

LIGHTING CONFIGURATION

Low beam light source: LED
High beam light source: LED

INTERNAL CONFIGURATION

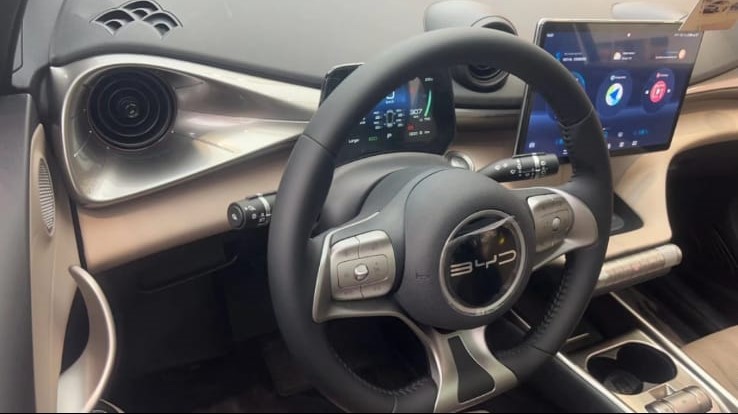

Steering wheel material: Leather
Steering wheel position adjustment: Manual up and down adjustment
Shift mode: Pushbutton shift
Trip computer display screen: Color
LCD instrument size: 5 inches
Mobile wireless charging function: Front row

GLASS/REARVIEW MIRROR

Front/rear electric windows: Front/rear
One-touch window lift function: Whole vehicle
External rear view mirror function: Electric adjustment
Electric folding
Rear view mirror heating
Auto-folding when locking the car
Interior rear view mirror function: Manual anti glare
In-car vanity mirror: Main driver+lighting
Passenger side + lighting

AIR CONDITIONER/REFRIGERATOR

Air-conditioning temperature control method: Automatic air-conditioning
